Asme A105 Carbon Steel Rod Material SAE 1030 Steel Bar CK30

Certification : ISO 9001 ,CE

Place of Origin : Jiangsu,China

MOQ : 5 TON

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Ton/Tons per Month

Delivery Time : 7~10 working days

Product name : Carbon Steel Flat Bar

Thickness : ≥3mm

Delivery condition : Annealing,Normalized,Quench+Temper

Surface : Black Finish,Peeled,Rough Turned

Brand Name : Changjian

Contact Now

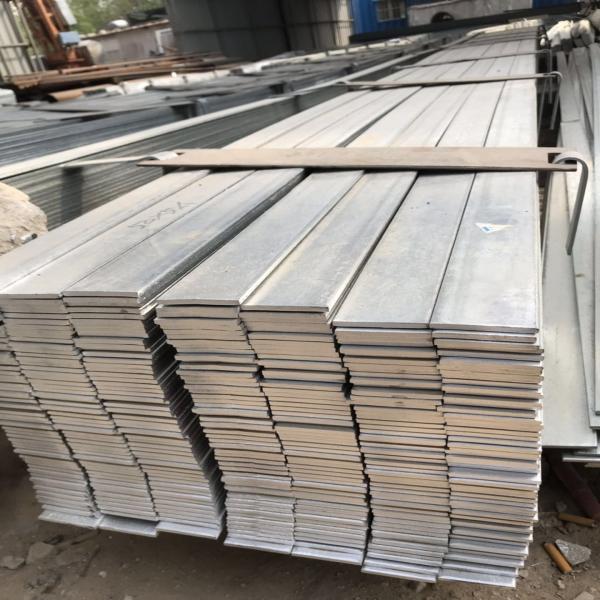

CARBON STEEL flat bar

Mild Steel Flat Bar is a versatile product commonly used in fabrication. With a flat surface and square edge, Sizing is represented as Width x Thickness, for example 40 x 25 = (45 mm Wide x 25mm Thick).



SAE 1030 is a plan carbon steel containing nominally 0.30% carbon. It is used in the hot-rolled, normalized, oil-quenched-and-tempered or water-quenched-and-tempered condition for general-purpose engineering and construction. It provides medium strength and toughness at low cost.



Product can be purchased in individual lengths or as a bundle and we can also cut to length.



GRADE

AISI

AISI 1008   AISI 1015   AISI 1017   AISI 1021   AISI 1025

AISI 1026   AISI 1035   AISI 1045   AISI 1050   AISI 1055
ASTM

SAE 1006   SAE 1008   SAE 1010  SAE 1020  SAE 1030

    SAE 1030   SAE 1035   SAE 1040   SAE 1045
JIS SCM415  SCM420  SCM440   SS400   S45C   S20C
GB Q195   Q215  Q235



SIZE

Size(mm) Weight(kg/m) Length(m)
10 × 3 0.24 ≥4
13 × 3 0.31 ≥4
13 × 5 0.51 ≥4
13 × 6 0.61 ≥4
16 × 3 0.38 ≥4
16 × 5 0.63 ≥4
... ... ...



EQUIVALENT GRADE OF ASTM 1030

Europe EN

Germany DIN

China GB

Japan JIS
C30 CK30/1.0528 30# S30C



CHEMICAL COMPOSITION

Element Carbon,C Manganese,Mn Ohosphorous,P Sulfur,S
1030 0.25~0.35% 0.30~0.90%        0.050%     0.050%



HEAT TREATMENT

It can be heat treated at the following temperatures:

  • Normalizing at 899°C – 954°C (1650°F-1750°F)
  • Annealing at 843°C – 871°C (1550°F-1600°F)
  • Stress relieving at 677°C – 927°C (1250°F-1700°F)
  • Carburizing at 899°C – 927°C (1650°F-1700°F)
  • Hardening at 788°C – 816°C (1450°F-1500°F)
